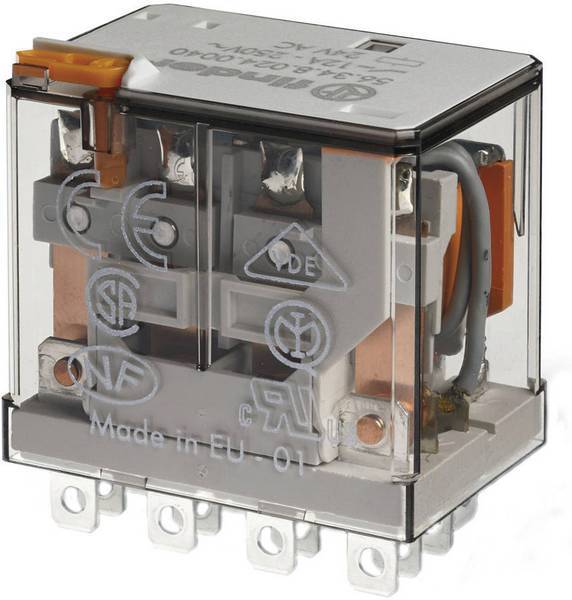

56.34.8.024.0040 (5634 24V AC FİNDER RÖLE)
Kategori
Marka
Stok Kodu
56.34.8.024.0040
Fiyat
25,19 EUR + KDV
81,97 TL den başlayan taksitlerle!
%42
683,76 TL
1.178,89 TL
| Type | 56.34.8.024.0040 |
|
|---|---|---|
| Coil nominal voltage | 24V AC |
|
| Min. pick-up voltage | 19.2V AC |
|
| Max. pick-up voltage | 26.4V AC |
|
| Control mode | monostable, 1 coil |
|
| R(coil) | 81Ω |
|
| Contact type | 4 change-overs |
|
| Contact material | AgNi |
|
| Switching voltage (max.) | 400V AC |
|
| Switching current (max.) | 12A |
|
| Max. switching capacity | 3000VA |
|
| Connection | Type C CEE 7/16 plug 4.8 mm |
|
| IP rating
|
Relay protection type RT I |
|
| Min. temperature | -40°C |
|
| Max. temperature | +70°C |
|
| Length | 40.8mm |
|
| Width | 27.7mm |
|
| Height | 37.1mm |
|
| Dim | (L x W x H) 40.8 x 27.7 x 37.1 mm |
|
| Content | 1pc(s) |
|
| RoHS-compliant | Yes |
|
| Product type | Plug-in relay |
